FW-XF7U Thermal Imaging Monocular with 1000m-9600m Detection Distance 1920x1080 OLED Display and >5.5h Battery Life
| Place of Origin | China |
|---|---|
| Brand Name | Forward |
| Model Number | FW-XF7U |
| Minimum Order Quantity | 1 set |
| Delivery Time | 5-8 work days |
| Payment Terms | L/C,T/T |
| Supply Ability | 100 pcs/year |
Contact me for free samples and coupons.
WhatsApp:0086 18588475571
WeChat: 0086 18588475571
skype: sales10@aixton.com
If you have any concern, we provide 24-hour online help.
xProduct Details
| Detection Distance | 1000m-9600m | Display Type | 1920x1080 OLED |
|---|---|---|---|
| Battery | >5.5h | Wavelength | 1535nm |
| Range | 30m~3Km，±2m ( Mid-size Car ) | Positioning Accuracy | 5m (CEP), 10m (PE) |
| Highlight | Multifunctional observation instrument,Aim assist system observation instrument,Infrared night vision reconnaissance observation instrument |
||
Product Description

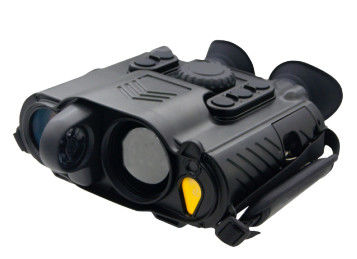

FW-XF7U Aim Assist System Infrared Night Vision Reconnaissance Multifunctional Observation Instrument
The FW-XF7U Aim Assist System integrates infrared imaging, visual imaging, laser ranging, positioning and orientation, and meteorological measurement technologies. Its built-in ballistic algorithm enables all-weather aiming capability, real-time collection of shooting-related meteorological data, and precise ballistic calculations to enhance shooting accuracy.
Key Features
- Advanced infrared thermal imaging with UFPA detector
- High-resolution visible light CMOS imaging
- Precision laser distance measurement
- Multi-system positioning (BeiDou/GPS/GLONASS)
- Comprehensive meteorological parameter measurement
- Long battery life with ICR 18650 power supply
- Rugged IP67 protection rating
- Wide operating temperature range (-40℃ to +60℃)
Technical Specifications
| Infrared Thermal Imaging | ||
|---|---|---|
| Detector | UFPA, 640*512, 12 μm | |
| NETD | ≤ 40 mK | |
| Infrared lens | 50mm F1, 8.8° *7° | |
| Range | ≥ 2.5 km (cars), ≥ 1.0km (people) | |
| Visible Light | ||
| Detector | CMOS 1920*1080, 1/2.8 | |
| Resolution | 1350 *1080 | |
| Lens | WFOV 40° *32°, NFOV 0.35° *0.28° | |
| Range | ≥ 9.5km (cars), ≥ 4km (people) | |
| Laser Distance Measurement | ||
| Wavelength | 1535nm | |
| Measuring range | 30m~3Km, ±2m (Mid-size car) | |
| Positioning and Orientation | ||
| Model | BeiDou/GPS/GLONASS | |
| Positioning accuracy | 5m (CEP), 10m (PE) | |
| Target positioning accuracy | ≤ 20m@1Km | |
| Positioning angle accuracy | 0.1° (RMS) elevation / 0.2° (RMS) azimuth | |
| Magnetic declination correction | Automatic identification of local magnetic declination | |
| Physical Properties | ||
| Size | 210mm*178mm*75mm (L*W*H) | |
| Weight | ≤ 1.75 Kg (including battery) | |
| Protection level | IP67 | |
| Operating temperature | -40℃ ~ +60℃ | |
