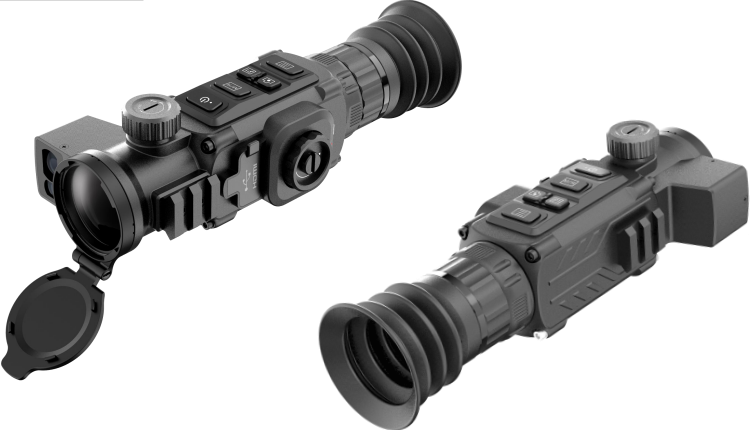

FW-ED14 Thermal Sight 640x512 Resolution 12µm UFPA Sensor
| Place of Origin | China |
|---|---|
| Brand Name | Forward |
| Model Number | FW-ED14 |
| Minimum Order Quantity | 1 set |
| Delivery Time | 5-8 work days |
| Payment Terms | L/C,T/T |
| Supply Ability | 100 pcs/year |
Contact me for free samples and coupons.
WhatsApp:0086 18588475571
WeChat: 0086 18588475571
skype: sales10@aixton.com
If you have any concern, we provide 24-hour online help.
xProduct Details
| NETD | ≤20mk | Pixel Pitch | 12µm |
|---|---|---|---|
| Resolution | 640×512 | Spectral Range | 8-14µm |
| Frame Rate | 50Hz | Image Sensor | UFPA (VOx |
| Highlight | FW-ED14 thermal monocular 640x512 resolution,thermal imaging monocular 12µm UFPA sensor,thermal sight with high-resolution UFPA sensor |
||
Product Description
FW-ED14 Thermal Image Sight 640 x 512 Resolution Infrared Detector
Key Attributes
| NETD | ≤20mk |
|---|---|
| Pixel pitch | 12µm |
| Resolution | 640×512 |
| Spectral range | 8-14µm |
| Frame rate | 50Hz |
| Image Sensor | UFPA (VOx) |
Product Overview
The FW-ED14 Thermal Image Sight features a 640 x 512 resolution infrared detector with high thermal sensitivity for exceptional detail recognition in challenging weather conditions. This advanced scope incorporates AI target recognition, target tracking, and intelligent ballistic calculation capabilities. Ideal for hiking, hunting, and search and rescue operations.
Key Features
- 12µm uncooled infrared detector with NETD≤20mk
- 1024×768 resolution with 0.39 inch OLED display
- AI-based automatic target recognition
- Stable automatic target tracking
- Multiple pseudo color options for different scenarios
- Intelligent ballistic function
- Compact and lightweight design
Application Scenarios
- Animal observation
- Outdoor adventure
- Security law enforcement
- Emergency search and rescue
Components and Controls
- Objective lens
- Laser rangefinder
- Focus knob
- Power button
- Mode/Return button
- Capture/Left button
- Zoom/Right button
- Menu/Confirm button
- Diopter adjustment ring
- Ocular lens
Technical Specifications
| Image Sensor | UFPA(VOx) |
|---|---|
| Resolution | 640×512 |
| Pixel pitch | 12μm |
| NETD | ≤20mk |
| Spectral range | 8-14μm |
| FOV | 8.7°×7.0° |
| Focus Mode | Focus Knob |
| Eye relief/Exit pupil | 40mm/6mm |
| Diopter | +5D to -5D |
| Detection Range | 3.5km (Human; 2pixels) |
| Recognition Range | 590m (Human; 12pixels) |
| Screen | AMOLED, 0.39 inch |
| Brightness Adjustment | Support |
| Color Palette | White Hot/Black Hot/Red |
| Digital Zoom | 1×; 2×; 4× |
